Elegant PVC Windows for Style and Performance

Products offer

PCV Windows

Pixel

Heat transfer coefficient up to Uw= 0,83 W (m2/K)
Acoustic insulation – Rw up to 37dB
6-chamber class A window profile with a 3 mm wall thickness and 70 mm casing depth
Matched in shape, straight glazing beads adapted to the shape of the profile.
A class of window profiles
Narrow floating mullion with symmetrically positioned handle
The larger glazing area compared to traditional profiles reduces the consumption of heating energy by increasing the volume of sunlight entering through the window.
This proprietary profile reinforcement made of bent galvanised steel makes it possible to design large-sized windows. Autorski, chroniony zgłoszeniem patentowym system wzmocnień stalowych, pozwala na wykonanie modnych dużych przeszkleń.
A mechanism in the tilt window preventing the sash from shutting on its own
Possibility of use 1 – chamber glazing units with Ug=1,0 W /m²K or 2 chamber units with Ug=0,5 W/m²K

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

Prolux

Heat transfer coefficient up to Uw= 0,90 W (m2/K)
Sound Reduction Index Rw = 37dB
6-chamber class A window profile with a 3 mm wall thickness and 70 mm casing depth.
Unique, patented “SAFE LOCATION” solution – a system of specially designed fitting elements that ensure the correct sash position in the window
Multi-step tilt regulation by the handle
Lean and elegant profile, with a 33% narrower floating mullion and symmetrically placed handle
The larger glazing area
PROLUX windows can have 2-chamber glass panels with a U-value of 0.6 W/m2K.
A leaner, more rounded window sash.

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

Winergetic Premium Passive

Heat transfer coefficient Uw= 0,62 W (m2/K)
Sound Reduction Index Rw = 33dB
7-chamber class A window profile with 3 mm wall thickness and 82 mm casing depth
Proprietary profile design rounded from the outside
7 chambers and a 3 mm profile wall thickness guarantee not only the stability and durability of the window, but most importantly, ensure improved protection against low temperatures and noise
Multi-step tilt regulation Ground-breaking reinforcement with the “SpaceBlock” thermal blockade.
2 chamber glazing units with U = 0,5 W/m²K or 3 – chamber sealed glazing unit with Ug = 0,3 W/m²K

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

Winergetic Premium

Heat transfer coefficient Uw= 0,62 W (m2/K)
Sound Reduction Index Rw = 33dB
7-chamber class A window profile with 82 mm casing depth,
Proprietary profile design rounded from the outside
s Special construction and application of optional thermal reinforcement in the frame guarantee maintaining the best parameters of heat insulation,
3 mm profile wall thickness guarantee not only the stability and durability of the window, but most importantly, ensure improved protection against low temperatures and noise.
A mechanism in the tilt window preventing the sash from shutting on its own,
The Winergetic Premium window is fitted with an under-sill trim with gasket that enables correct and sealed assembly of the cillboard and the window sill,
Gasket in the bottom groove
2-chamber sealed glazing unit with excellent insulation parameters and outstanding transparency

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

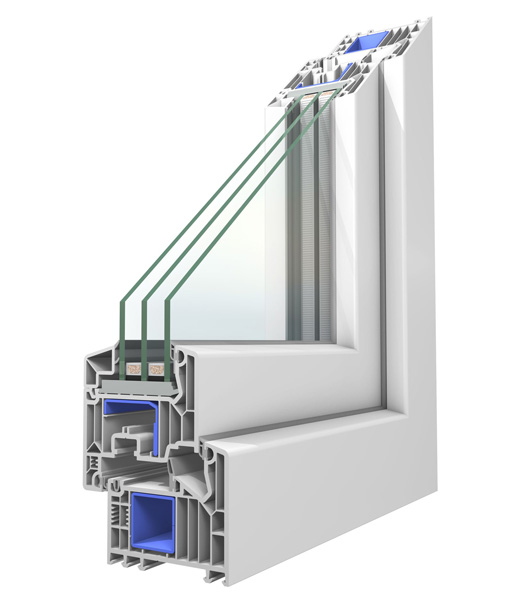

Winergetic Standard

Heat transfer coefficient Uw= 0,62 W (m2/K)
Sound Reduction Index Rw = 33dB
7-chamber class A window profile with 82 mm casing depth,
Simple profile
s Special construction and application of optional thermal reinforcement in the frame guarantee maintaining the best parameters of heat insulation,
3 mm profile wall thickness guarantee not only the stability and durability of the window, but most importantly, ensure improved protection against low temperatures and noise.
A mechanism in the tilt window preventing the sash from shutting on its own,
The Winergetic Premium window is fitted with an under-sill trim with gasket that enables correct and sealed assembly of the cillboard and the window sill,
Gasket in the bottom groove
2-chamber sealed glazing unit with excellent insulation parameters and outstanding transparency

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

Koncept

Heat transfer coefficient Uw= 0,92 W (m2/K)
Sound Reduction Index Rw = 34dB
5 – chamber class A window profile with 70 mm casing depth
3 mm profile wall thickness guarantee not only the stability and durability of the window, but most importantly, ensure improved protection against low temperatures and noise,
window is fitted with an under-sill trim with gasket that enables correct and sealed assembly of the cillboard and the window sill,
A mechanism in the tilt window preventing the sash from shutting on its own

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

Prismatic

Heat transfer coefficient Uw= 0,78 W (m2/K)
Sound Reduction Index Rw = 33dB
5-chamber class A window profile with 80 mm casing depth
Design for clients who value simplicity of form
2-chamber units with Ug=0,5W/m2K.
Lean and elegant profile, with a 20mm narrower floating mullion and symmetrically placed handle
The larger glazing area compared to traditional profiles,
A mechanism in the tilt window preventing the sash from shutting on its own
window is fitted with an under-sill trim with gasket that enables correct and sealed assembly of the cillboard and the window sill.

Photos
Colors
Windows

Photos

Colors

Profile okienne – zestawienie kolorów Pobierz

Windows

HST Premium Patio Doors

a five-chamber door frame profile, with installation depth of 197 mm, a four-chamber door leaf profile with installation depth of 85 mm
Uw on the level of 0.92 W/m²K with a Ug=0.5 glazing unit with a Warmatec spacer
advanced thermal insulation parameters that guarantee low heat losses and, consequently, low costs of space heating
glazing or filling panel thickness up to 51 mm, which enables making large glazed surfaces with energy-efficient two-chamber insulated glass units
a Thermostep 68 mm warm threshold
as an option, a flatstep threshold (24 mm) with a thermal separator
possible use of motor-driven fittings
different designs with at least several different versions and layouts of door leafs and fixed parts
a simple, classical profile
More space thanks to the ability to build a structure up to 6.5 m long and as much as 2.8 m high

Photos
Colors
Windows

Photos

Colors

Profil drzwi – zestawienie kolorów Pobierz

Windows

HST Patio Doors

Tilt and slide windows
The leaves are installed on two independent guide rails and when the door is opened they are positioned behind one another
The door leaf can be up to 3.0 m wide and the passage can be as much as 2.9 m wide. This solution makes it possible to build glazed surfaces of surface area up to 13.8 m2
Special handles and grips that enable easy sliding of the patio door leaf.
The door can be fitted with an electric drive that ensures high comfort of use.
Possibility to use burglary-proof fittings of the RC2 class
Optional fittings equipped with the trickle ventilation function

Photos
Colors
Windows

Photos

Colors

Profil drzwi – zestawienie kolorów Pobierz

Windows

PSK i PSK-Z Patio Doors

The hoisted-sliding system makes it possible to slide door leaves up to 1.6 m wide without any problems, thus achieving clear width of the passage of more than 1.5 m
Freedom of use: in the Winergetic Premium and Koncept systems, it is possible to install a two-side handle with a key lock insert; as a result, the PSK-Z door can be used as an additional entrance door
The PSK doors are available in the following systems: Pixel, Prolux, Koncept, and Koncept with aluminum covers. The PSK-Z doors are available in all OKNOPLAST window systems.

Photos
Colors
Windows

Photos

Colors

Profil drzwi – zestawienie kolorów Pobierz

Windows

PSK Atrium Patio Doors

The hoisted-sliding system makes it possible to slide door leaves up to 1.6 m wide without any problems, thus achieving clear width of the passage of more than 1.5 m
The special fittings make it possible to slide the huge leaves with little force..
The fitting has special snaps that guide the leaf to the closed position – all you have to do is turn the handle
Trickle ventilation on the circumference of the leaf – in the trickle ventilation position, the sliding door is bolted to prevent breaking into the room.

Photos
Colors
Windows

Photos

Colors

Profil drzwi – zestawienie kolorów Pobierz

Windows

Accessories

WINKHAUS ProLight

Passive lite of the window with floating mullion, fitted with an espagnolette with concealed lever, lends the open window an exquisitely elegant appearance; the lever facilitates the handling of the sash and improves protection against uncontrolled closing. Additional multi-step tilt regulation by handle. Unique, patented “SAFE LOCATION” solution – a system of specially designed fitting elements that ensure the correct sash position in the window. The unique, octagonal mushroom cam works with frame strikers, providing an initial stage of protection, and its ergonomic shape, perfectly aligned with the frame strikers, enables convenient handling of the sashes.

Multi Power

The so-called “invisible hinges” are concealed between the frame and the sash. This unique solution improves the aesthetic features of the window, but also its tightness. They also make it easier to keep the blinds, roller shutters and storm shutters clean. Guaranteed durability and functionality.

Warmatec

The Warmatec glass panel spacer, made of high-grade stainless steel and plastic, is a combination of outstanding parameters with high aesthetic value. The spacer minimises the risk of vapour condensation in the corners, which are the coldest points of the glass panel, and improves the appearance of the window. The material reduces the penetration of moisture into the sealed glazing unit, thus reducing energy bills. The spacer is available in three colours matching the window veneer.

Win Click

Latch that enables closing of balcony doors from the outside, protecting the house from draft.

Win step

Low aluminium or PVC threshold – 2 cm height.
